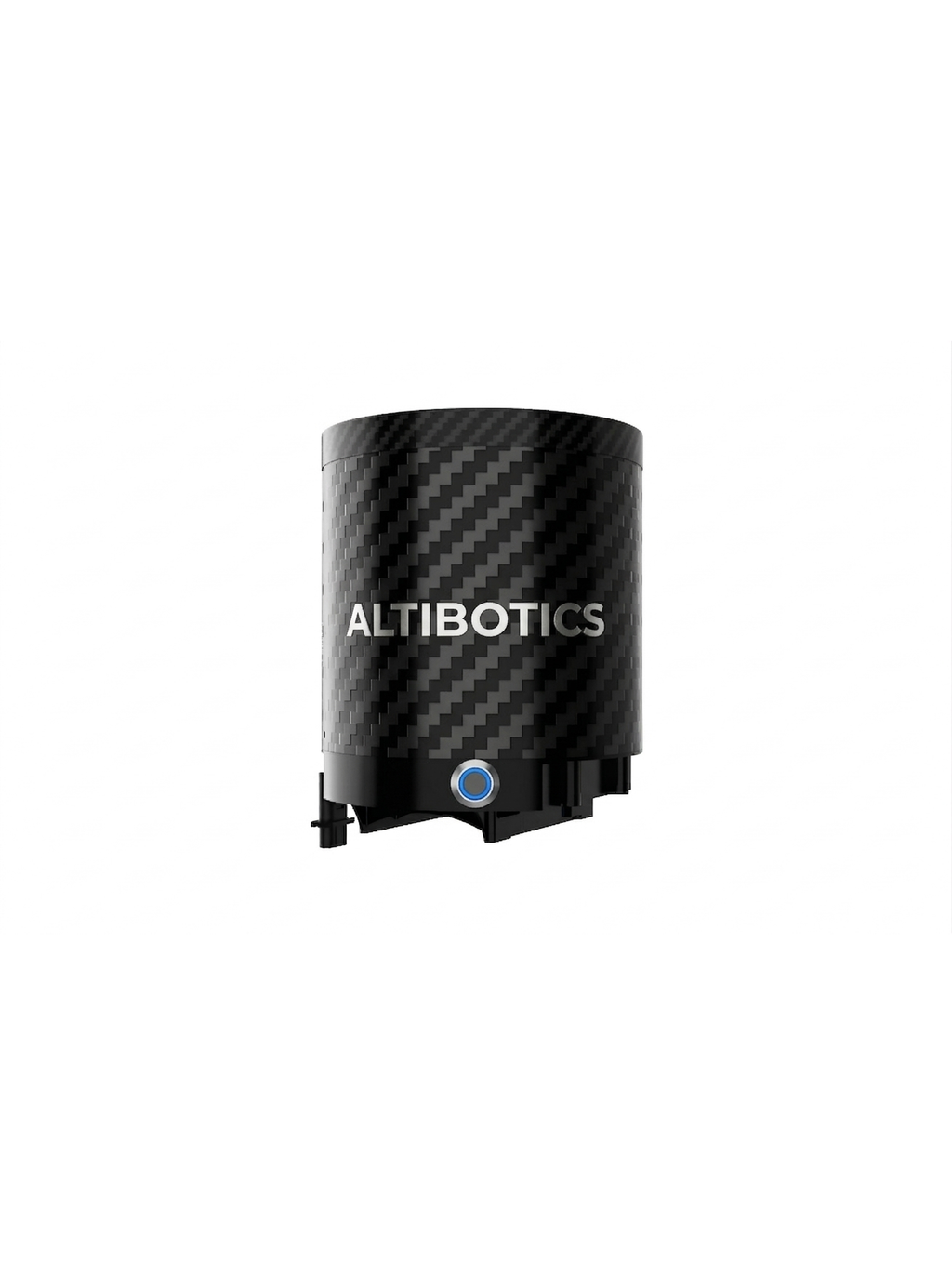

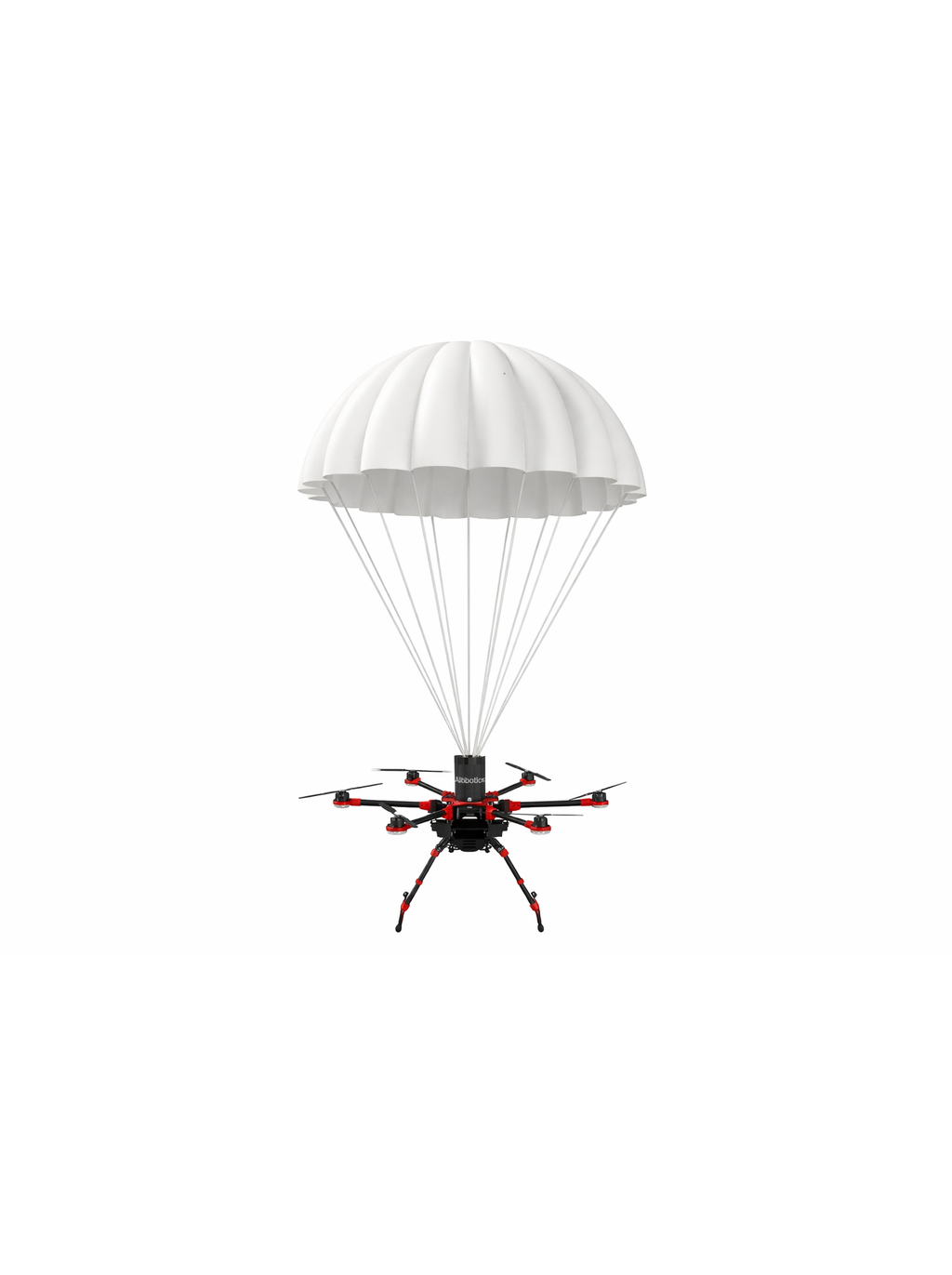

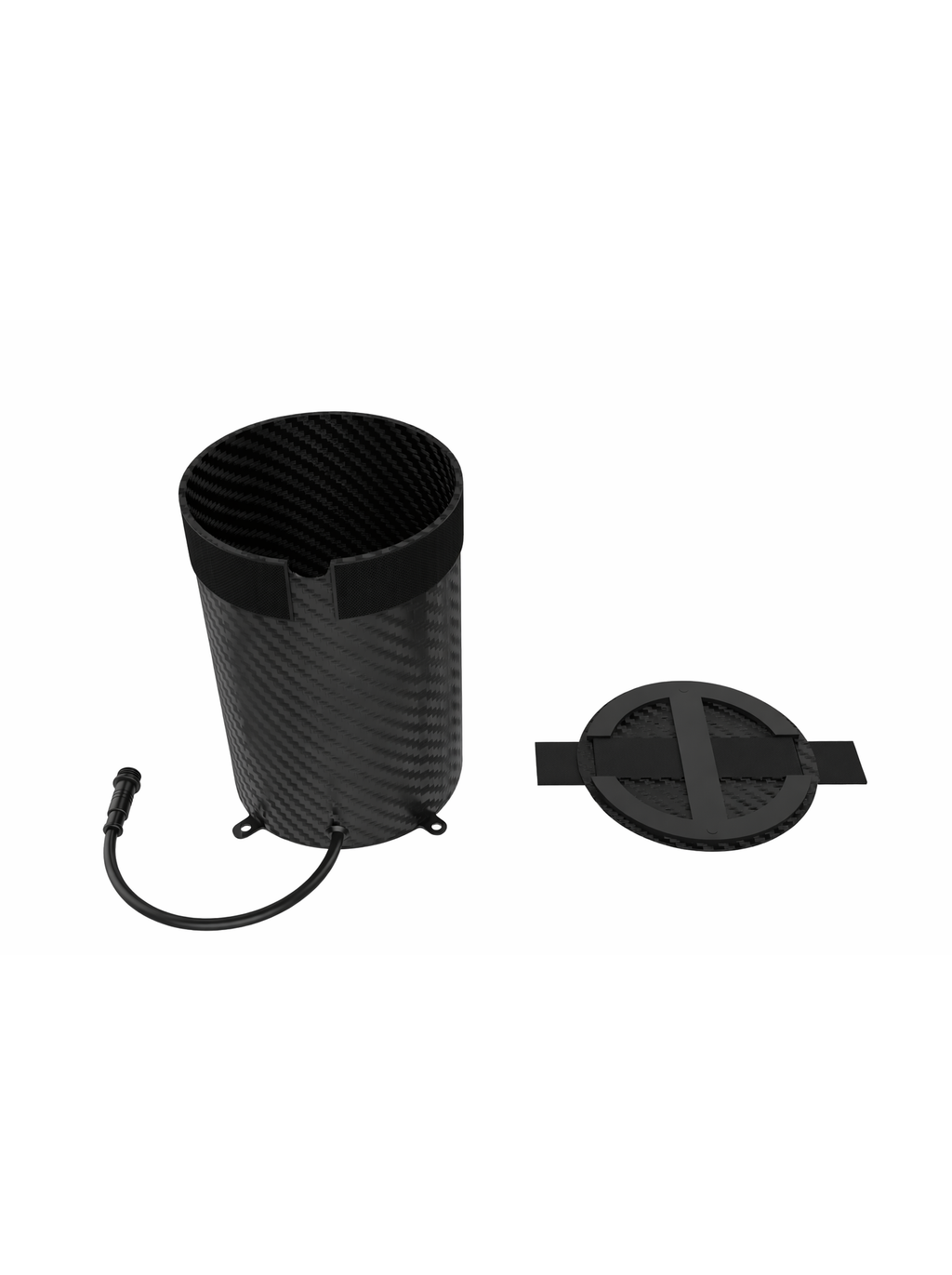

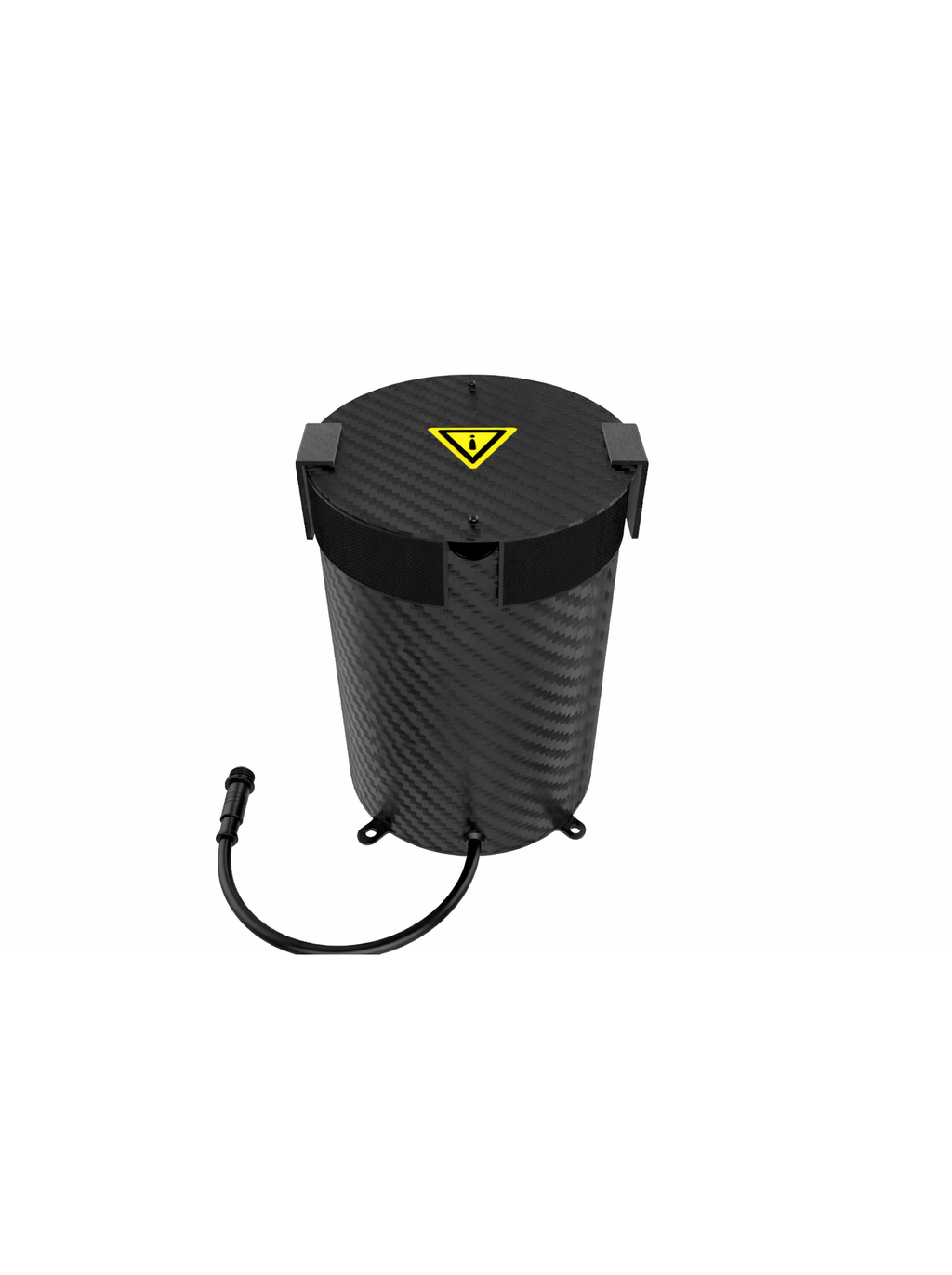

Customized Drone Parachute Recovery System, PRS-CX0
All-in-one customized UAV parachute solution with tailored integration, rapid installation, reusable architecture, OTA upgrades, and intelligent audio-visual alerts—engineered for maximum safety, reliability, and operational efficiency.
Our parachute recovery systems support UAVs with take-off weights ranging from 10 kg to 100 kg, or even above. If you have specific requirements regarding weight or installation, please feel free to contact us, www.altibotics.com
Model: PRS-C20 (Customized Parachute for 20KG Take-off Weight Drone, As Sample Reference)
Drone Max Take-off Weight: 20 kg
PRS Housing Dimensions: Φ104 mm × H118 mm
Parachute Diameter: 3 m
PRS Weight: 468 g
PRS Trigger Methods: Attitude / Weightlessness / Remote Control / Serial Port Communication
Trigger Attitude Threshold: 80°
Trigger Weightlessness Threshold: 0.5 g / 1.4 s
Minimum Deployment Altitude: 20 m
Input Voltage: 5–24 V
Mounting Method: M3 screws
Operating Temperature: -20°C to 60°C
Operating Altitude: -150 m to 4,000 m
Customization | Tailored to Your Platform
Based on the Altibotics parachute recovery platform, we offer customized solutions to meet specific UAV requirements. Parachute size and installation are tailored according to the drone’s structure, take-off weight and any special requirements from manufacturers or system designers—ensuring optimal performance, seamless integration, and regulatory compliance.
Fast Installation | No Pre-Installation Required
Designed and customized for multi-rotor UAV applications, the system features a simplified installation method that enables quick mounting and removal without the need for any pre-installed kits. The new RPS-C structure also allows rapid reuse in emergency situations by directly replacing the parachute module.
Reusable Design | Reduced Operation Costs
The reusable parachute recovery system is designed so that after each deployment, only consumable components need to be replaced, eliminating the need to replace the parachute or housing. With a lifecycle of up to 30 uses, the system delivers enhanced durability and reliability.
OTA Upgrades | Synchronized System Updates
Now equipped with OTA (Over-the-Air) upgrade capability, allowing users to update the parachute recovery system via configuration software. Compatible with multiple flight platforms and operating environments.
Multi-Layer Alerts | Enhanced Safety Assurance
The system integrates an alarm speaker module that provides voice status notifications during normal operation. During deployment, it emits audible alerts to warn nearby personnel. High-intensity LED lights activate at night, delivering flashing visual warnings and illuminating the deployed parachute. Combined audio and visual alerts also assist in post-deployment location and recovery.
