Drone Airdrop System, DAS-05

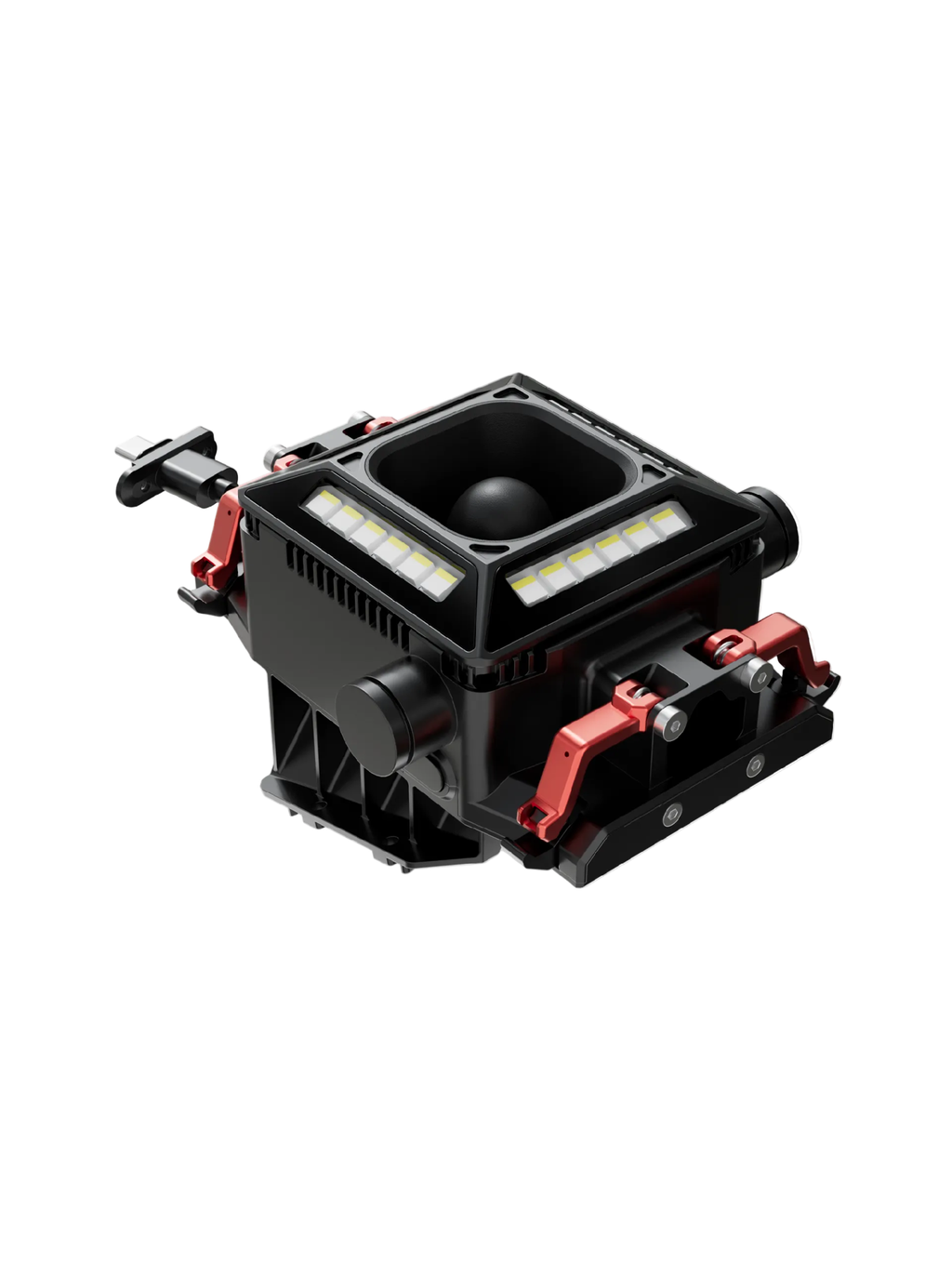

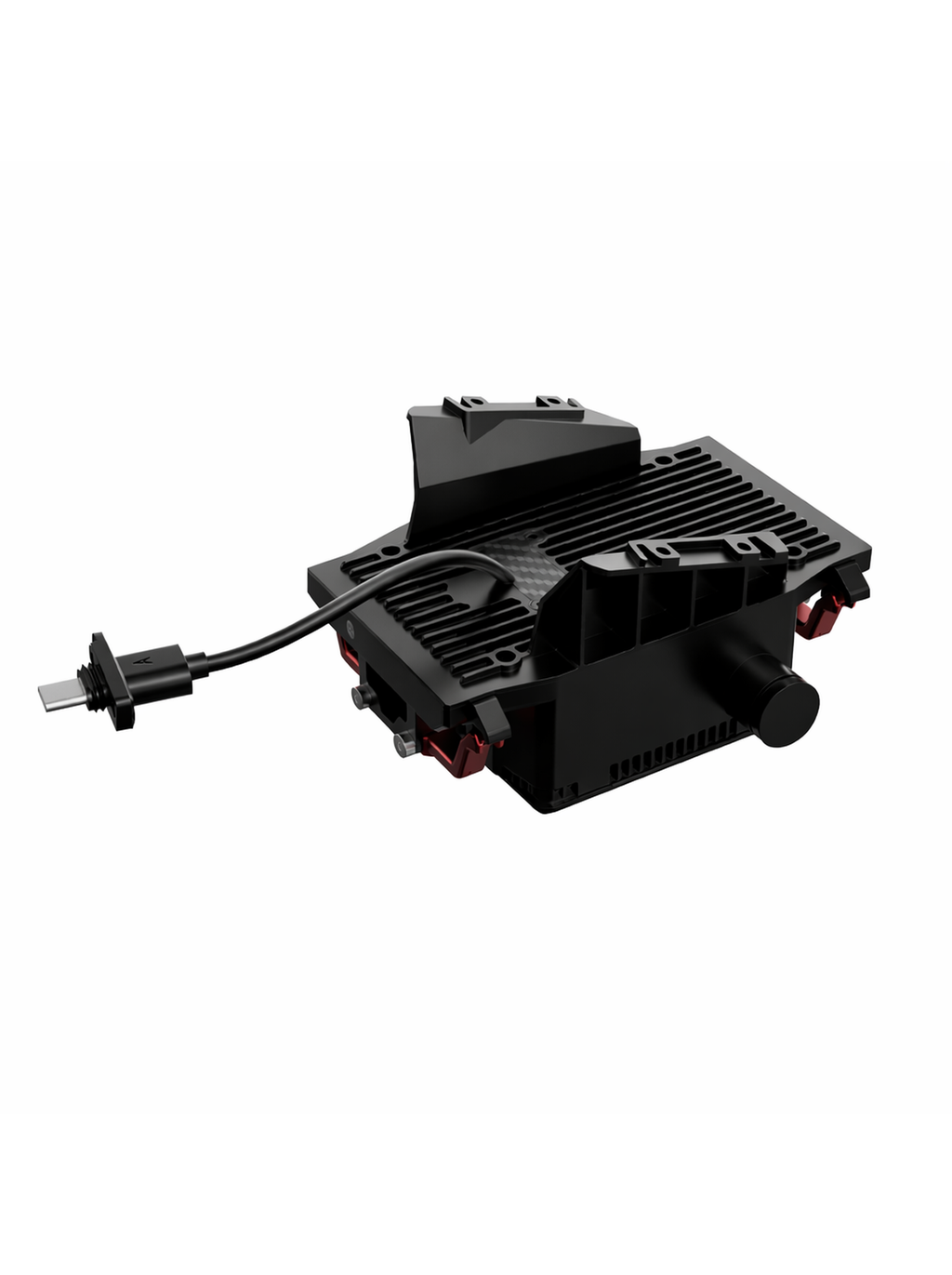

Drone Airdrop System DAS-05

All-in-one UAV Airdrop system combining precision airdrop, high-intensity lighting, powerful audio broadcasting, and long-range drone detection for accurate delivery by safe, efficient, all-weather operations.

Model: DAS-05
Compatible Devices: DJI Matrice 400
Product Measurement: 5.0*3.4*2.9 inch (123*87*73 mm)
Weight: 420g
Quantity Of Grippers: 4
Gripper Load Capacity: 10KG each
LED Lamination: up to 96W
Speaker: up to 120 dB
Working Temperature: -20 to 60 ºC
Working Altitude: up to 4000m
Power: E-Port
Installation: M3 screws

Four Independent Airdrop Mechanisms | High Payload, High Reliability

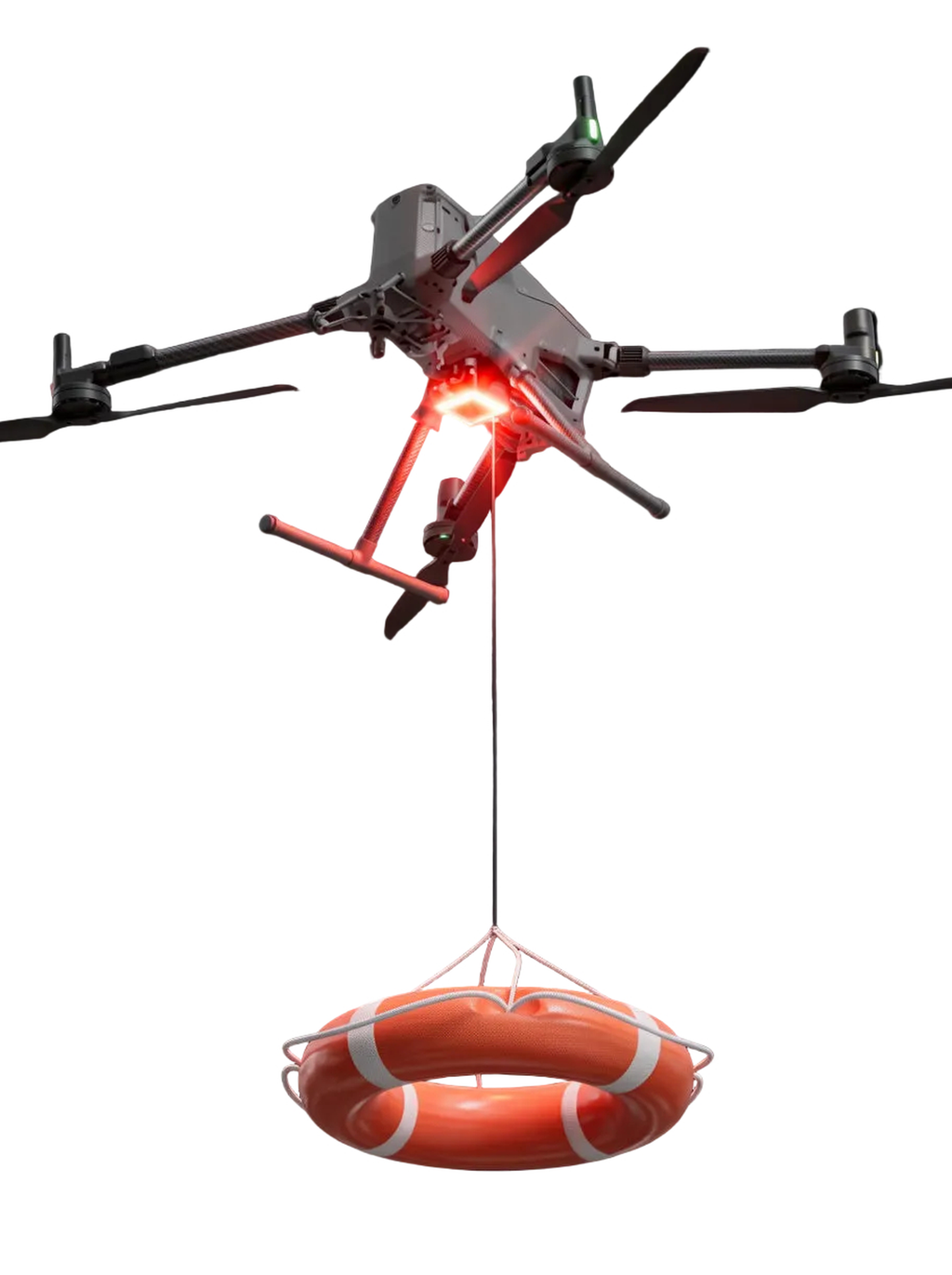

Featuring a four independent airdrop design, the system supports consecutive delivery of up to four payloads, with a maximum load of 10 kg per gripper. Integrated with the drone’s FPV camera, it enables precise positioning and accurate delivery.

Night Illumination System | 24-Hour, All Weather Operation

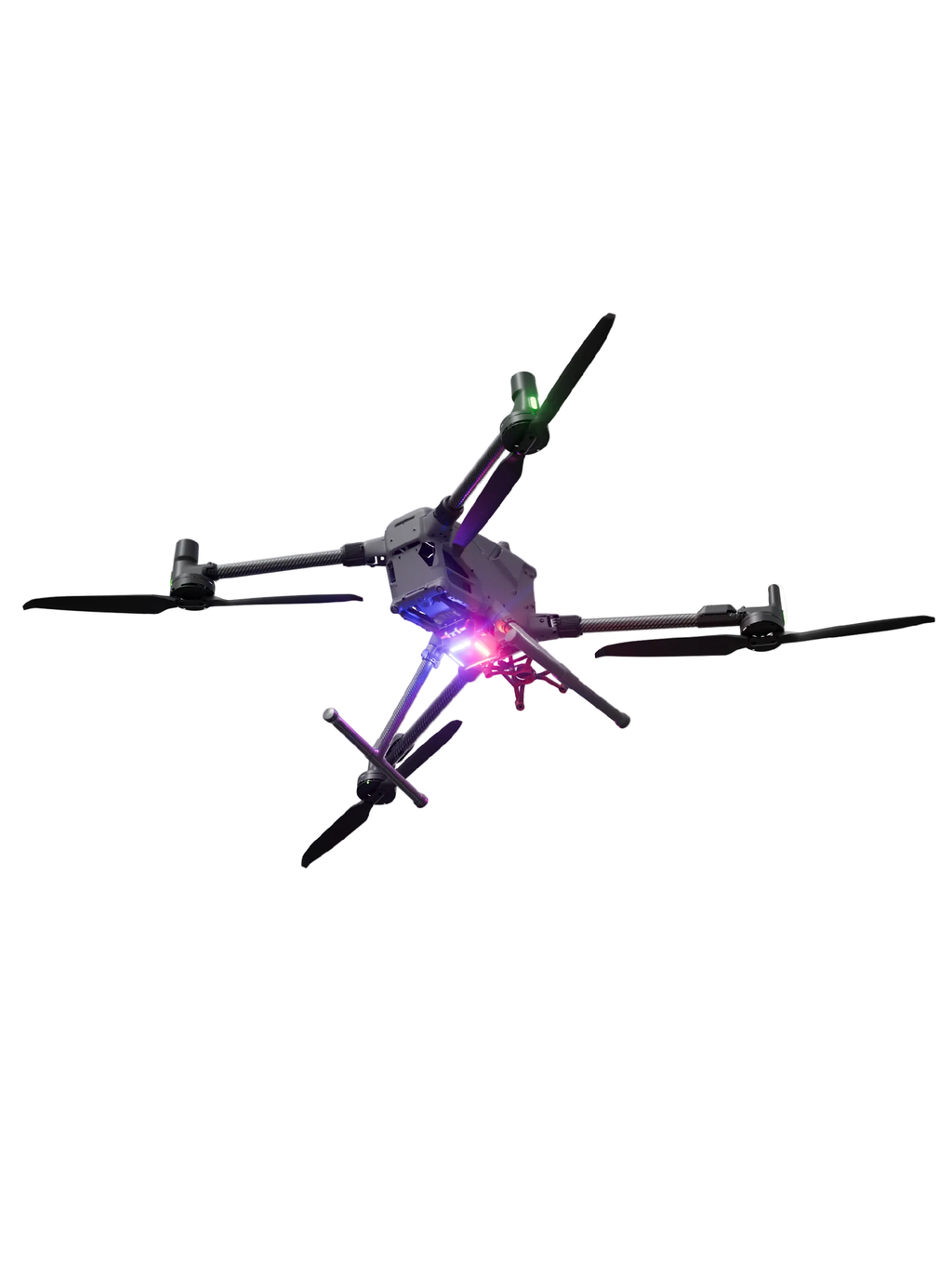

Integrated with a 48W omnidirectional LED lighting system, providing powerful illumination to support nighttime and all-weather rescue and ground operations.

Warning Lights | 360° High-Visibility
The warning-light module integrates 24 RGB LEDs in a four-sided array layout, delivering full 360° visibility. Visible distance reaches up to 1KM.

High-Power Loudspeaker | 120 dB Broadcast
Equipped with an integrated emergency loudspeaker system, supporting real-time voice broadcasting, text-to-speech, and audio file playback—ideal for command, coordination, and rescue operations.

Drone Detection | Aerial Early Warning Platform
Built-in a proprietary Remote ID detection module, capable of identifying other drones Remote ID data within a range of up to 1.5 km—enhancing airspace awareness and safety.

Applicable Industries
All industries demand quick delivery, including:
- Public Safety
- First Response
- Medical Aid
- Natural Resources Development (Forrest, Mining and Land)
- Event Coordination, etc.
